Multiflex board + Mattress topper for VW T5/T6 Caravelle/Multivan. Ultimate kit
VW T5/T5.1/T6/T6.1 Caravelle/Multivan Bed extension
Miltiflex board + mattress for VW T5/T6 Caravelle/Multivan. Ultimate kit
Welcome to our upgraded bed extension. For the past four years it has become ever so popular among the VW van owners. We have committed to continuously improving our products and maintain reputable quality. We shall continue selling our previous model at a competitive price. Please browse through our other products.

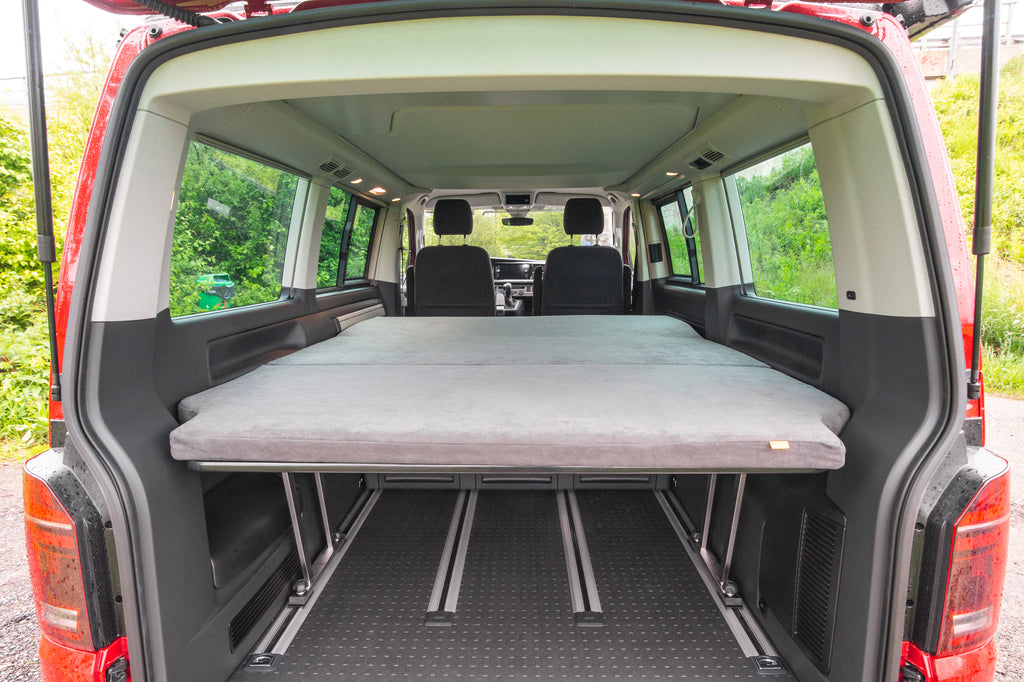

This is an affordable solution for easy conversion of your van/people carrier into a camper van/day van. With this specially designed for VW T5/T6 bed extension, you do not have to spend loads of money on conversions. With just a few simple steps, you can prepare a comfortable bed by adding this bed extension to the rear of you van. It is easy to assemble and fix to the locking rails of the van. When not required as a bed it can be used as dividing shelf for better utilisation of the boot space. Because of the board sturdiness, it can carry heavy loads. Max pay load 180kg. The product now features a supportive mechanism which allows the board to remain in an upright position once lifted. This is a great add on to our very successful and highly appreciated bed extension.
1/Consoles: Two consoles made of blasted stainless steel with stainless steel hinges. Each console has two locking units, for absolutely secure handling in the locking rail. Now we have redesigned them to allow more functionality. We have added two struts (one for each console) for easy lifting/dropping of the board. Also, bottom end stabilizers to eliminate side movements when driving. Two rubber buffers prevent rattle noise. Screws for board fixation. Height 50.5 cm. Total weight: approx. 5.5 kg
2/Board (bed extension): Compressed wood panel approx. 142 cm x 62 cm Décor: Anthracite, Ergo Soft leg edge 5 mm Highly abrasion-resistant surface. Extremely durable. Lighter and more durable than the original CA. 7 kg. It comes with pre-drilled holes, making it easier to fix to the console hinges.
3/Foldable sleeping mattress. Dimensions: L183 cm x W 148 cm x H 6 cm. The mattress is made of hard wearing and top quality car upholstery material in anthracite gray. It is filled in with 6 cm quality foam cores for the ultimate comfort experience. The foam is 6 cm thick, high density: 42 g/dm, and compressible strength of 5,5. Sewn in three sections so folds easily. It goes in a carrier bag for easy storage when not in use. The material used is hypoallergenic. The foam cores are removable.
3A/Memory Foam Mattress. Dimensions: L183 cm x W148 cm x H 8 cm. The mattress is made of high grade and top quality car upholstery material in anthracite grey. The cores are made of 6 cm quality foam and 2 cm memory foam. The result is ultimate comfort experience. The base foam is 6 cm thick, high density: 42 g /dm, and compressible strength of 5,5. Sewn in three sections, so folds in easily for easy storage when not in use. The material used is hypoallergenic. The foam cores are not removable. Comes in a neat carrier bag.
Handy mattress protector for both mattresses can be supplied upon request.

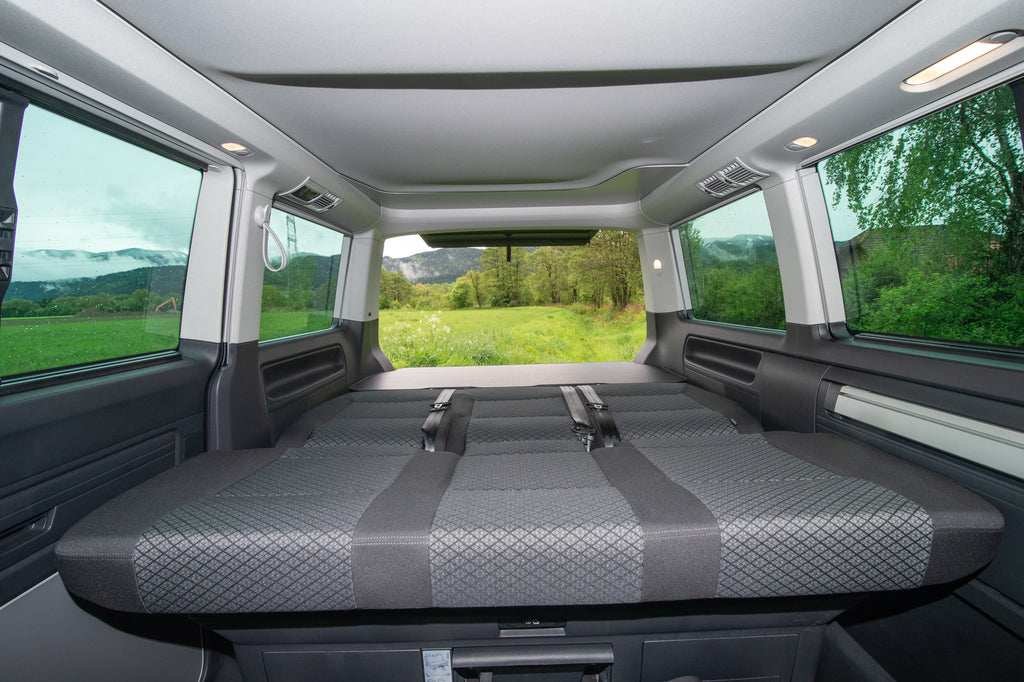

These mattresses have been made to measure to fit on top of the original folding seats and the Multiflexboard, adding extra comfort and help protect against lumps and bumps.

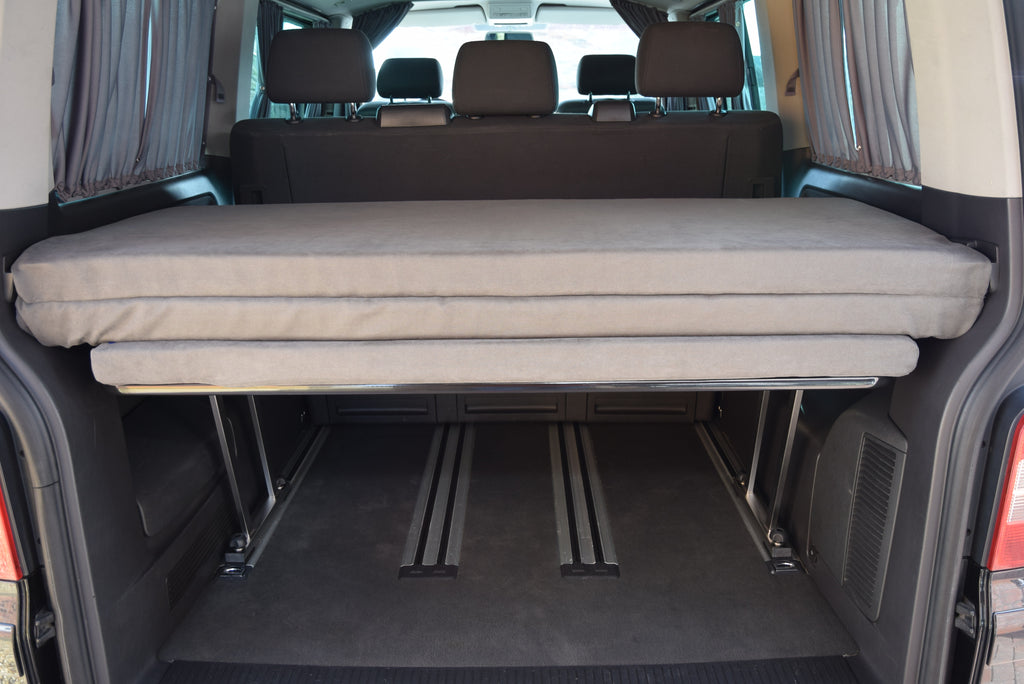

The height of the consoles is 50.5 cm and precisely corresponds to the height of the third seat (bench) when reclined, so that they can make an even surface for the mattress. You do not need any tools to fix the consoles to the rails. They can be easily mounted to the rails with the anchors and nuts provided. The T-shaped anchors have a groove at the top. When the groove is parallel to the rail, it is in unlocked position. When perpendicular to the rail is locked.
The board gets fixed to the hinges with the screws provided. The hinges allow the board to lift in an upright position in order to create ample space for bulky loads. Maximum load: 180 kg
This board fits into all SWB and LWB VW T5 / T6 Multivan and Caravelle models from 2003 up to date (not for T7 Multivan) with long bottom locking rails on the floor, as well as VW Transporter conversions.
We are willing to continue improving our product in order to satisfy our customers. Should you experience any difficulties with this product please do not hesitate to get in touch via email or directly phone Stefan on: 07435654758 for assistance.
This is a professionally made product, made by enthusiasts for enthusiasts.
Country and Region of Manufacture: EU
Product Group: Interior Parts
Product Type: Bed extension
Brand: STee FRee
Mounting Position: Rear
Surface Composition: Multiplex plywood
Manufacturer Number: MFB T5/T6
Manufacturer Warranty: 1 Year
Manufacturer: STee FRee
